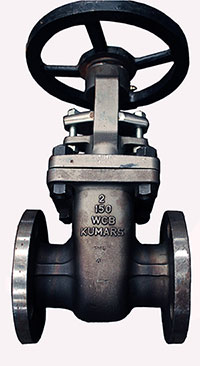

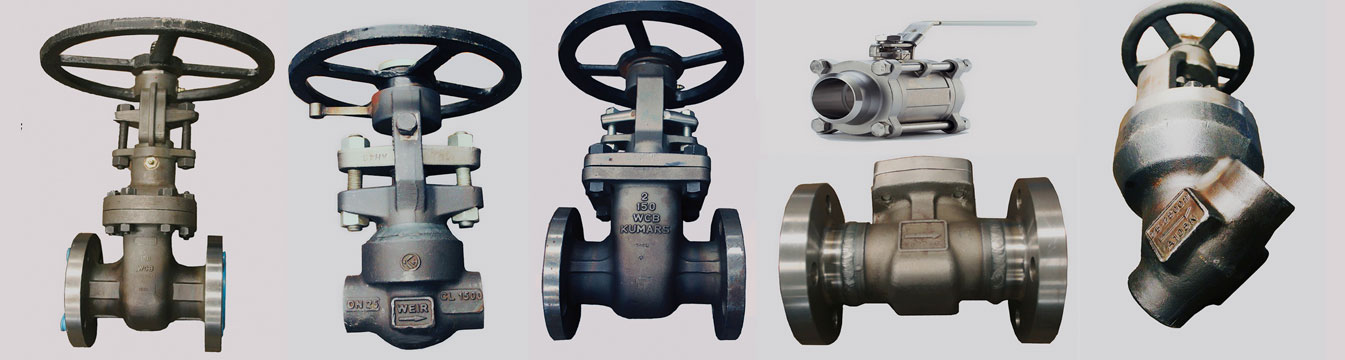

Description
Kumars Gate Valve confirm to API602 & ASME B16.34 are provided smooth machined full opening of the wedge estimation additional pressure drop across the valve.
DESIGN CONSTRUCTION
| Bolted Bonnet | 800 |
| Welded Bonnet | 1500 & 2500 |
DETAILS
| SIZE | 1/2''TO2'' |
| PRESSURE CLASS | 800,1500,2500 |
STANDARDS
| Design Standard | API602 / ASME B16.34 |
| Inspection Standard | API598 |
| Face To face | MFG.STANDARD |
| End Connection | BUTT WELD AS PER ASME B16.25 / SOCKET WELD AS PER ASME B16.11 / SCREWED AS PER ASME B1.20.1 |
SPECIAL REQUIRMENTS
| Satellited Trim | 1500,2500 |
| Bare stem & locking arrangement | 800,1500,2500 |
MATERIAL
| Body | ASTM A105N / ASTM A350LF2 / ASTM A182 F11-CL2 / ASTM A182 F22-CL3 / ASTM AF91 / ASTM A182 304L /ASTM A182F316L |
| Wedge | ASTM A217GR.CA15 / ASTM A276 TYPE 410 / ASTM A217GR CF8M SS316 / ASTM A217GR.CF8 SS304 / MONELALLOY-20 /HAST-ALLOY |
| Seat | ASTM A276 TYPE 410 SS316 SS304 /ASTM A A276 TYPE 410 + ST6 /MONELALLOY-20 / HAST-ALLOY |
| Stem | ASTM A276 TYPE 410 /SS316/ SS304 /MONELALLOY-20/HAST-ALLOY |
| Gland Packing | INCONEL BREADED RING WITH CORROSION INHIBITOR + MOLDED GRAPHITERING |
| Bonnet Gasket | SPIRAL WOUNDED 316 + GRAPHITE |
TEST PRESSURE
| Class | Hydraulic Body KgCm2 (PSIG) | Hydraulic Seat Back Seat KgCm2(PSIG) | Seat Air KgCm2(PSIG) |
| 800 | 210 (2986) | 153 (2176) | 7 (100) |
| 1500 | 396 (5632) | 291 (4138) | 7 (100) |
| 2500 | 660 (9387) | 484 (6884) | 7 (100) |

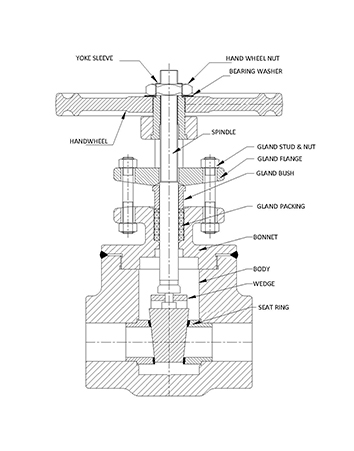

FORGED GATE VALVE BILL OF MATERIAL
| SL No. | Part Name | Material Specification | Qty |
| 1 | Body | ASTM A105N | 1 |
| 2 | Bonnet | ASTM A105N | 1 |
| 3 | Wedge | ASTM A217 GrCA15 | 1 |
| 4 | Seatring | ASTM A276 TYPE 410 | 2 |
| 5 | Spindle(Stem) | ASTM A276 TYPE 410 | 1 |
| 6 | Glandbush | ASTM A276 TYPE 410 | 1 |
| 7 | Glanpacking | INCONEL BRAIDED GR.RINGS WITH CORROSION INHIBITOR + MOLDED GRAPHITE RINGS | 1 Set |
| 8 | Glanflange | ASTM A105 + Zn PLATED | 1 |
| 9 | Handwheel | S.G.Iron | 1 |
| 10 | Gland Stud & Nut | A193Gr.B7A194Gr.2H+ZN PLATED | 2 Set |
| 11 | Yoke Sleeve | SS416 | 1 |
| 12 | Hand Wheel Nut | A194Gr.2H | 1 |
| 13 | Bearing Washer | HARDENED STEEL | 1 |
| 14 | Hex Bolt | A193Gr.B7+ZnPLATED | 4 |
| 15 | Gasket | SPW SS316 + GRAPHITE | 1 |
| 16 | Bonnet Bush(Backseat) | INTEGRAL | -- |
GATE VALVE STANDARD DIMENSION CHART
| GATE VALVE CLASS#800 |
Size | L | H | ø'W' | Wt.(Approx.)(KG) | |||||||
| Open | Close | |||||||||||
| Inch | mm | RB | FB | RB | FB | RB | FB | RB | FB | RB | FB | |
| 1/2 | 15 | 90.0 | 90.0 | 152.0 | 156.0 | 164.0 | 172.0 | 96.0 | 96.0 | 2.100 | 2.200 | |
| 3/4 | 20.0 | 90.0 | 102.0 | 156.0 | 170.0 | 172.0 | 193.0 | 96.0 | 112.0 | 2.200 | 3.600 | |
| 1 | 25 | 102.0 | 130.0 | 170.0 | 236.0 | 193.0 | 272.0 | 112.0 | 150.0 | 3.600 | 6.750 | |
| 1 1/2 | 40.0 | 130.0 | 148.0 | 236.0 | 249.0 | 272.0 | 287.0 | 150.0 | 200.0 | 6.750 | 12.850 | |
| 2 | 50 | 148.0 | 180.0 | 249.0 | 328.0 | 287.0 | 279.0 | 200.0 | 200.0 | 12.850 | 24.500 | |
| GATE VALVE CLASS#1500 |
Size | L | H | ø'W' | Wt.(Approx.)(KG) | |||||||
| Open | Close | |||||||||||
| Inch | mm | RB | FB | RB | FB | RB | FB | RB | FB | RB | FB | |
| 1/2 | 15 | 90.0 | 90.0 | 164.0 | 171.0 | 152.0 | 157.0 | 112.0 | 112.0 | 2.100 | 2.200 | |
| 3/4 | 20 | 90.0 | 102.0 | 171.0 | 245.0 | 157.0 | 227.0 | 112.0 | 170.0 | 2.200 | 4.800 | |
| 1 | 25 | 102.0 | 130.0 | 245.0 | 255.0 | 227.0 | 231.0 | 200.0 | 230.0 | 4.800 | 6.750 | |
| 1 1/2 | 40 | 130.0 | 148.0 | 282.0 | 294.0 | 251.0 | 254.0 | 230.0 | 280.0 | 7.250 | 13.550 | |
| 2 | 50 | 148.0 | 148.0 | 294.0 | 313.0 | 254.0 | 272.0 | 250.0 | 280.0 | 13.550 | 13.900 | |
| GATE VALVE CLASS#2500 |
Size | L | H | ø'W' | Wt.(Approx.)(KG) | ||
| Open | Close | ||||||
| Inch | mm | FB | FB | FB | FB | FB | |
| 1/2 | 15 | 90.0 | 236.0 | 222.0 | 150.0 | 3.200 | |
| 3/4 | 20 | 102.0 | 245.0 | 227.0 | 170.0 | 7.000 | |
| 1 | 25 | 130.0 | 283.0 | 258.0 | 230.0 | 8.700 | |
| 1 1/2 | 40 | 148.0 | 280.0 | 244.0 | 350.0 | 16.800 | |
| 2 | 50 | 180.0 | 326.0 | 282.0 | 400.0 | 24.550 | |
Special requirements
Special material ,customer specific design & internal parts provide as per requirement & on request.
Note: -Due to continues developments we reserve the right to change the parameters with out prior notice

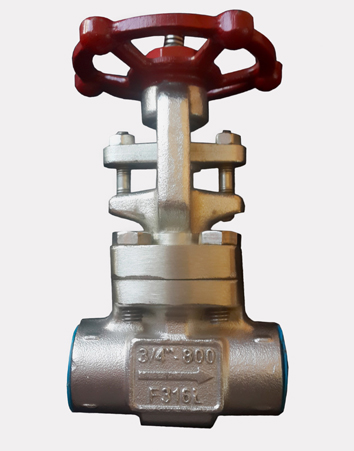

Description

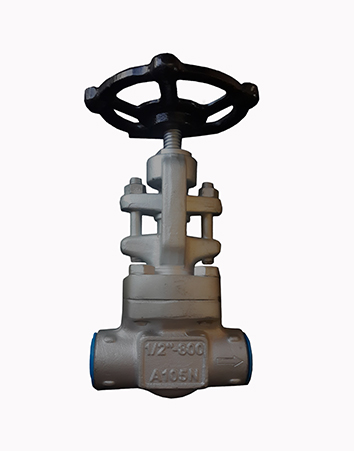

Kumars Globe Valve confirm to API 602 & ASME B 16.34 are provided smooth machined full bore & reduced bore.
DESIGN CONSTRUCTION
| Bolted Bonnet | 800 |
| Welded Bonnet | 1500 & 2500 |
DETAILS
| Size | 1/2 To 2 |
| Pressure Class | 800,1500,2000 |
STANDARDS
| Designed Standard | API602 / ASMEB16.34 |
| Inspection Standard | API 598 |
| Face to face | MFG.STANDARD |
SPECIAL REQUIRMENTS
| Stellited Trim | 1500,2500 |
| Bare Stem & locking arrangement | 800,1500,2500 |
MATERIAL
| Body | ASTM A105N ASTM A 350 LF2 / ASTM A 182 F11 - CL2 / ASTM A 182 F22-CL3 / ASTM A F91 / ASTM A 182 304L / ASTM A 182 F 316L |
| Plug | ASTM A217 GR . CA15 / ASTM A 276 TYPE 410 / ASTM A217 GRCF8M SS316 / ASTM A 217 GR.CF8 /SS304 /MONEL ALLOY-20/HAST-ALLOY |
| Seat | ASTM A 276 TYPE 410 SS316/ SS304 /ASTM AA 276 TYPE 410 + ST6 |
| Stem | ASTM A276 TYPE 410 SS316 / SS304 /MONELALLOY-20/ HAST-ALLOY |
| Gland Packing | INCONEL BREADED RINGWITH CORROSION INHIBITOR + MOLDED GRAPHITERING |
| Bonnet Gasket | SPIRAL WOUNDED 316 + GRAPHITE |
TEST PRESSURE
| Class | Hydraulic Body KgCm2 (PSIG) | Hydraulic Seat Back Seat KgCm2(PSIG) | Seat Air KgCm2(PSIG) |
| 800 | 210 (2986) | 153 (2176) | 7 (100) |
| 1500 | 396 (5632) | 291 (4138) | 7 (100) |
| 2500 | 660 (9387) | 484 (6884) | 7 (100) |

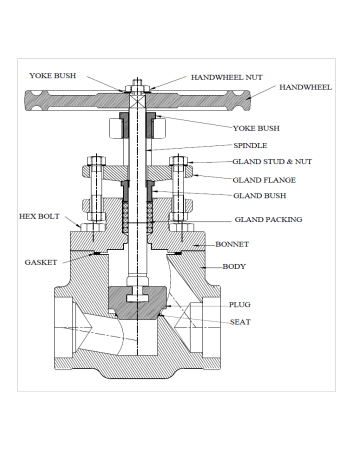

FORGED GLOBE VALVE BILL OF MATERIAL
| SL No. | Part Name | Material Specification | Qty |
| 1 | Body | ASTM A105N | 1 |
| 2 | Bonnet | ASTM A105N | 1 |
| 3 | Plug | ASTM A217 GrCA15 | 1 |
| 4 | Seatring | ASTM A276 TYPE 410 | 2 |
| 5 | Spindle(Stem) | ASTM A276 TYPE 410 | 1 |
| 6 | Glandbush | ASTM A276 TYPE 410 | 1 |
| 7 | Glanpacking | INCONEL BRAIDED GR.RINGS WITH CORROSION INHIBITOR + MOLDED GRAPHITE RINGS | 1 Set |
| 8 | Glanflange | ASTM A105 + Zn PLATED | 1 |
| 9 | Handwheel | S.G.Iron | 1 |
| 10 | Gland Stud & Nut | A193Gr.B7A194Gr.2H+ZN PLATED | 2 Set |
| 11 | Yoke Bush | SS416 | 1 |
| 12 | Hand Wheel Nut | A194Gr.2H | 1 |
| 13 | Bearing Washer | HARDENED STEEL | 1 |
| 14 | Hex Bolt | A193Gr.B7+ZnPLATED | 4 |
| 15 | Gasket | SPW SS316 + GRAPHITE | 1 |
| 16 | Bonnet Bush(Backseat) | INTEGRAL | -- |
DIMENSION CHART
| GLOBE VALVE 800 |
Size | L | H | ø'W' | Wt.(Approx.)(KG) | |||||||
| Open | Close | |||||||||||
| 1/2 | 15 | 90.0 | 90.0 | 160.0 | 159.0 | 168.0 | 175.0 | 96.0 | 96.0 | 2.100 | 2.200 | |
| 3/4 | 20 | 90.0 | 102.0 | 159.0 | 178.0 | 175.0 | 190.0 | 96.0 | 112.0 | 2.200 | 3.600 | |
| 1 | 25 | 102.0 | 130.0 | 178.0 | 243.0 | 190.0 | 280.0 | 112.0 | 150.0 | 3.600 | 6.750 | |
| 1 | 40 | 130.0 | 148.0 | 243.0 | 250.0 | 280.0 | 285.0 | 150.0 | 200.0 | 6.750 | 12.850 | |
| 2 | 50 | 148.0 | 180.0 | 250.0 | 282.0 | 285.0 | 342.0 | 200.0 | 200.0 | 12.85 | 24.50 | |
| GLOBE VALVE 1500 |
Size | L | H | ø'W' | Wt.(Approx.)(KG) | |||||||
| Open | Close | |||||||||||
| 1/2 | 15 | 90.0 | 90.0 | 164.0 | 161.0 | 154.0 | 151.0 | 170.0 | 170.0 | 2.100 | 2.200 | |
| 3/4 | 20 | 90.0 | 102.0 | 165.0 | 244.0 | 150.0 | 222.0 | 170.0 | 230.0 | 2.200 | 4.800 | |
| 1 | 25 | 102.0 | 130.0 | 247.0 | 257.0 | 230.0 | 230.0 | 230.0 | 230.0 | 4.800 | 4.800 | |
| 1 | 40 | 130.0 | 148.0 | 254.0 | 254.0 | 237.0 | 280.0 | 280.0 | 350.0 | 6.750 | 6.750 | |
| 2 | 50 | 148.0 | 148.0 | 275.0 | 275.0 | 262.0 | 280.0 | 280.0 | 350.0 | 12.850 | 14.500 | |
| GLOBE VALVE 2500 |
Size | L | H | ø'W' | Wt.(Approx.)(KG) | ||
| Open | Close | ||||||
| Inch | mm | FB | FB | FB | FB | FB | |
| 1/2 | 15 | 90.0 | 234.0 | 222.0 | 170.0 | 2.200 | |
| 3/4 | 20 | 102.0 | 243.0 | 228.0 | 230.0 | 5.800 | |
| 1 | 25 | 130.0 | 264.0 | 248.0 | 230.0 | 8.700 | |
| 1 | 40 | 148.0 | 275.0 | 250.0 | 350.0 | 17.500 | |
| 2 | 50 | 180.0 | 333.0 | 280.0 | 400.0 | 28.400 | |
Description

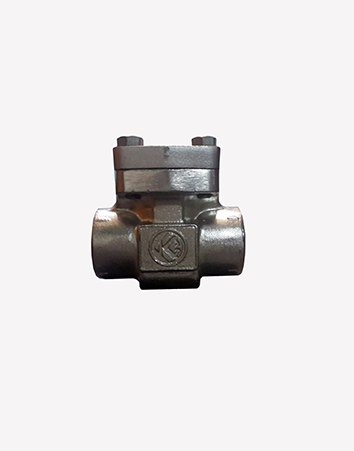

Kumars Lift Check Valve confirm to API602 & ASME B16.34 are provided smooth machined full opening of the wedge estimation additional pressure drop across the valve.
DESIGN CONSTRUCTION
| Bolted Bonnet | 800 |
| Welded Bonnet | 1500 & 2500 |
DETAILS
| SIZE | 1/2"TO2" |
| PRESSURE CLASS | 800,1500,2500 |
STANDARDS
| Design Standard | API602 / ASME B16.34 |
| Inspection Standard | API598 |
| Face To face | MFG.STANDARD |
| End Connection | BUTT WELD AS PER ASME B16.25 / SOCKET WELD AS PER ASME B16.11 / SCREWED AS PER ASME B1.20.1 |
MATERIAL
| Body | ASTM A105N / ASTM A350LF2 /ASTM A182F11-CL2 /ASTMA182 F22-CL3 / ASTMA F91 /ASTM A182304L / ASTM A182F316L |
| Plug | ASTM A217GR.CA15 / ASTMA276 TYPE 410 / ASTM A217GR CF8MSS316 / ASTM A217GR.CF8SS304 / MONELALLOY-20/ HAST-ALLOY |
| Seat | ASTM A276 TYPE 410 SS316 SS304/ ASTM AA276 TYPE 410 + ST6 |
| Spring | SS316 |
| Bonnet Gasket | SPIRAL WOUNDED 316 + GRAPHITE |

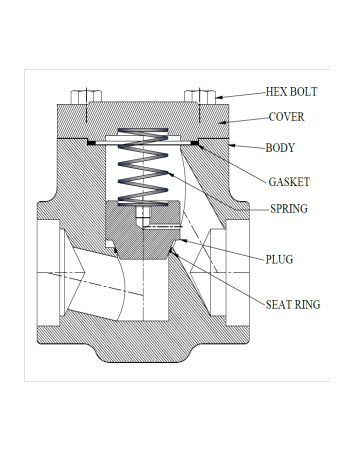

FORGED LIFT CHECK VALVE BILL OF MATERIAL
| SL No. | Part Name | Material Specification | Qty |
|---|---|---|---|
| 1 | Body | ASTM A105N | 1 |
| 2 | Bonnet | ASTM A105N | 1 |
| 3 | Plug | ASTM A217 GrCA15 | 1 |
| 4 | Seatring | ASTM A276 TYPE 410 | 2 |
| 5 | Hex Bolt | A193Gr.B7 + ZnPLATED | 1 |
| 6 | Gasket | SPW SS316 + GRAPHITE | 1 |
| 7 | Spring | SS316 | 1 |
TEST PRESSURE
| Class | Hydraulic Body KgCm2 (PSIG) | Hydraulic Seat Back Seat KgCm2(PSIG) | Seat Air KgCm2(PSIG) |
| 800 | 210 (2986) | 153 (2176) | 7 (100) |
| 1500 | 396 (5632) | 291 (4138) | 7 (100) |
| 2500 | 660 (9387) | 484 (6884) | 7 (100) |
LIFT CHECK VALVE STANDARD DIMENSION CHART
| LIFT CHECK VALVE CLASS 800 |
Size | L | H | Wt.(Approx.)(KG) | ||||
| Inch | mm | RB | FB | RB | FB | RB | FB | |
| 1/2 | 15 | 90.0 | 90.0 | 54.3 | 56.5 | 1.500 | 1.600 | |
| 3/4 | 20.0 | 90.0 | 102.0 | 56.5 | 66.5 | 1.600 | 2.800 | |
| 1 | 25 | 102.0 | 130.0 | 66.5 | 90.0 | 2.800 | 5.400 | |
| 1 1/2 | 40.0 | 130.0 | 148.0 | 90.0 | 105.0 | 5.400 | 9.000 | |
| 2 | 50 | 148.0 | 180.0 | 105.0 | 125.0 | 9.000 | 15.200 | |
| LIFT CHECK VALVE CLASS 1500 |
Size | L | H | Wt.(Approx.)(KG) | ||||
| Inch | mm | RB | FB | RB | FB | RB | FB | |
| 1/2 | 15 | 90.0 | 90.0 | 50.0 | 50.0 | 1.300 | 1.300 | |
| 3/4 | 20.0 | 90.0 | 102.0 | 52.0 | 63.0 | 1.400 | 2.600 | |
| 1 | 25 | 102.0 | 130.0 | 63.0 | 63.0 | 2.600 | 2.600 | |
| 1 1/2 | 40.0 | 130.0 | 130.0 | 85.0 | 85.0 | 5.200 | 5.200 | |
| 2 | 50 | 148.0 | 148.0 | 90.0 | 90.0 | 8.800 | 8.800 | |
| LIFT CHECK VALVE CLASS 2500 |
Size | L | H | Wt.(Approx.)(KG) | |
| Inch | mm | FB | FB | FB | |
| 1/2 | 15 | 90.0 | 47.0 | 1.400 | |
| 3/4 | 20 | 102.0 | 77.0 | 2.600 | |
| 1 | 25 | 130.0 | 87.0 | 5.200 | |
| 1 1/2 | 40 | 148.0 | 93.0 | 8.800 | |
| 2 | 50 | 180.0 | 109.0 | 15.000 | |
Special requirements
Special material ,customer specific design & internal parts provide as per requirement & on request.
Note: -Due to continues developments we reserve the right to change the parameters with out prior notice

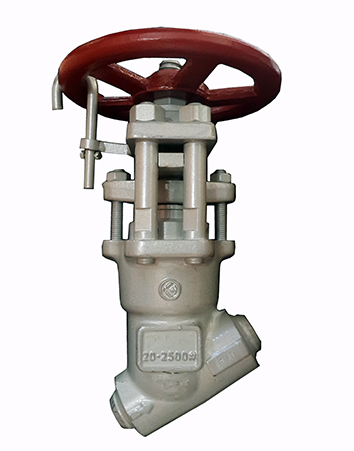

Description
Kumars Y-Type Globe Valve (pressureseal) confirm to API 602 & ASME B16.34 are provided with smooth machined.
DESIGN CONSTRUCTION
| Pressure Seal | #1500, #2500 |
DETAILS
| SIZE | 1/2"TO2" |
| PRESSURE CLASS | #1500,#2500 |
STANDARDS
| Design Standard | API602 / ASME B16.34 |
| Inspection Standard | API 598 / BS6755 |
| Face To face | MFG.STANDARD |
| End Connection | BUTT WELD AS PER ASME B 16.25 SOCKET WELD AS PER ASME B16.11 SCREWED AS PER ASME B1.20.1 |
SPECIAL REQUIREMENT
| Stellited Trim | #1500,#2500 |
MATERIAL
| Body | ASTM A105N/ ASTM A350 LF2 / ASTM A182 F11-CL2/ ASTM A182 F22- CL3/ ASTM A F91/ ASTM A182 304L/ ASTM A182 F316L |
| Plug | ASTM A217 GR.CA15 / ASTM A276 TYPE 410/ ASTM A217 GR CF8M/ SS316/ ASTMA217GR.CF8 SS304 |
| Seat | ASTM A276 TYPE 410/ SS316/SS304/ASTM AA276 TYPE 410 + ST6 |
| Gland Packing | INCONEL BREADED RING WITH CORROSION INHIBITOR + MOLDED GRAPHITE RING |
TEST PRESSURE
| Class | Hydraulic Body KgCm2 (PSIG) | Hydraulic Seat Back Seat KgCm2(PSIG) | Seat Air KgCm2(PSIG) |
| 2500 | 660 (9387) | 484 (6884) | 7 (100) |

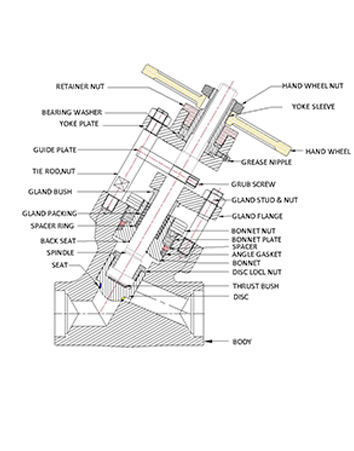

FORGED Y-TYPE GLOBE VALVE BILL OF MATERIAL
| SL No. | Part Name | Material Specification | Qty |
|---|---|---|---|
| 1 | Body | ASTM A105N | 1 |
| 2 | Bonnet | ASTM A105N | 1 |
| 3 | Plug Disc | ASTMA276SS410ASTMA217Gr.CA15 | 1 |
| 4 | Disc Lock Nut | INTEGRAL+ST6 | 1 |
| 5 | Spindle(Stem) | ASTMA276 TYPE 410 | 1 |
| 6 | Gland Bush | ASTMA276 TYPE 410 | 1 |
| 7 | Gland Packing | INCONEL BRAIDED GR.RINGS WITH CORROSION INHIBITOR + MOLDED GRAPHITE RINGS | 7-8 |
| 8 | Gland Flange | ASTM A105 | 1 |
| 9 | Spacer | ASTM A276 TYPE 410 | 1 |
| 10 | Gland Stud & Nut | A193 Gr.B7 A194 Gr.2H + Zn PLATED | 2 Set |
| 11 | Bonnet Plate | ASTM A276 TYPE 410 | 1 |
| 12 | Thrust Bush | ASTM A276 TYPE 410 | 1 |
| 13 | Spacer Ring | ASTM A276 TYPE 410 | 1 |
| 14 | Angle Gasket | HIGH PURITY GRAPHITE | 1 |
| 15 | Bonnet Bush | INTEGRAL + ST6 | 1 |
| 16 | Seat | INTEGRAL + ST6 | 1 |
| 17 | Bonnet Nut | ASTM A276 TYPE 410 | 1 |
| 18 | Guide Plate | EN8 + Zn PLATED | 1 |
| 19 | Grub Screw | MS | 2 |
| 20 | Tierod Nut | ASTM 193Gr.B16 ASTM A194 GR.7 | 4 Set |
| 21 | Yoke Plate | ASTM A182 F22 CL-3 | 1 |
| 22 | Grease Nipple | SS | 1 |
| 23 | Bearing Washer | BEARING STEEL BRASS | 1 |
| 24 | Yoke Sleeve | SS416 | 1 |
| 25 | Retainernut | ASTM A276 TYPE 410 | 1 |
| 26 | Hand Wheel | CARBON STEEL | 1 |
| 27 | Hand Wheelnut | A 194 Gr.2HAISI1020 | 1 |
DIMENSION CHART
| Y-TYPE GLOBE VALVE 1500 |
Size | L | H | ø'W' | Wt. | |
| Close | Approx.(Kg) | |||||
| Inch | mm | FB | FB | FB | FB | |
| 1/2 | 15 | 120 | 238.0 | 150.0 | 10.00 | |
| 3/4 | 20 | 120 | 238.0 | 150.0 | 10.02 | |
| 1 | 25 | 140 | 263 | 230 | 16.00 | |
| 1 1/2 | 40 | 222 | 372 | 250 | 32.90 | |
| 2 | 50 | 222 | 372 | 250 | 32.90 | |
| Y-TYPE GLOBE VALVE 2500 |
Size | L | H | ø'W' | Wt. | |
| Close | Approx.(Kg) | |||||
| Inch | mm | FB | FB | FB | FB | |
| 1/2 | 15 | 120.0 | 238.0 | 150.0 | 10.00 | |
| 3/4 | 20 | 120.0 | 238.0 | 150.0 | 10.20 | |
| 1 | 25 | 140.0 | 263.0 | 230.0 | 16.00 | |
| 1 1/2 | 40 | 222.0 | 345.0 | 250.0 | 32.90 | |
| 2 | 50 | 222.0 | 370.0 | 250.0 | 32.90 | |
Special requirements
Special material ,customer specific design & internal parts provide as per requirement & on request.
Note: -Due to continues developments we reserve the right to change the parameters with out prior notice

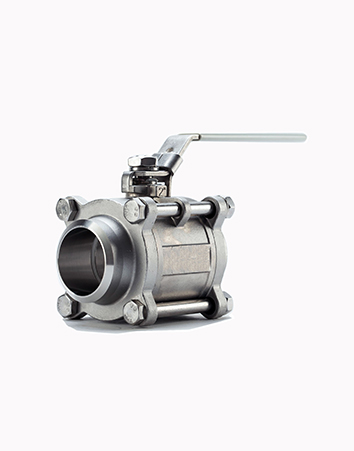

Description
Kumars Three Piece Ball Valve have been designed for long life economic operation & above all safety. this sealing system is virtually maintenance free but if the necessity arises then it can be easily re-tightened during service.
Standards
| Design Standard | BS5351/ ISO 10434/ API 6D |
| Inspection Standard | API598 |
| Face To face | MFG.STANDARD |
| End Connection | FLANGED END AS PER ASME B16.5 BUTT WELD AS PER ASME B16.25 SOCKET WELD AS PER ASME B16.11 SCREWED AS PER ASME B1.20.1 |
DETAILS
| Size | 1/2 to 2 |
| Pressure Class | 800 |
| Type | 3 Piece |
| Valve type | Floating Designs |
MATERIAL
| Body | ASTM A105 / ASTM A216Gr.WCB / ASTM A351GRCF8 / ASTM A351Gr.CF8M / ASTM A182F304 / ASTM A182F316 / ASTM A351GRCF3M /ASTM A351GRCF8 |
| Ball | ASTM A276 TYPE 410 /AISI304 /AISI316 / AISI316L / MONNEL ALLOY 20 /HAST-ALLOY |
| Stem | ASTM A276 TYPE 410 /AISI304/ AISI316 /AISI316L/ MONNEL ALLOY 20/ HAST-ALLOY |
| Seat | PTFE/RPTFE/GRAFOIL |
| Gland Packing | PTFE/RPTFE/GRAFOIL |

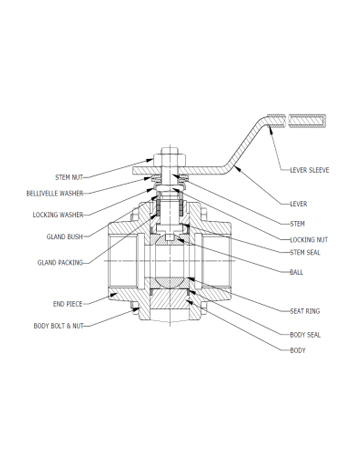

THREE PIECE BALL VALVE BILL OF MATERIAL
| Partname | Material Specification | Qty |
|---|---|---|
| Body | ASTM A105 /ASTM A182 F316L | 1 |
| End Piece | ASTM A105 /ASTM A182 F316L | 2 |
| Ball | ASTMA182Gr.F316 / ASTMA182Gr.F304 | 1 |
| Seat | PTFE / RPTFE | 2 |
| Body Seal | PTFE /RPTFE | 2 |
| Stem Seal | PTFE / RPTFE | 1 |
| Gland Packing | PTFE | 3 |
| Stem | ASTMA276 TYPE SS316 | 1 |
| Gland Bush | ASTMA276 TYPE SS316 | 1 |
| Stem Nut | ASTMA194Gr.2H | 1 |
| Body EC Bolt | ASTM A193 GR.B8M | 1 |
| Body EC Nut | ASTMA194Gr.8M | 1 |
| Lever | MILDSTEEL + ENP | 1 |
| Lever Sleeve | PVC | 1 |
| Belleville Washer | Spring Steel | 2 |
| Locking Washer | MS | 1 |
| Lock nut | ASTM A194Gr.2H | 1 |
DIMENSIONS CHART
| Three Piece Ball valve 800 |
Size | L | H | ø'W' | Wt.(Approx.)(KG) | |
| Inch | mm | FB | FB | FB | FB | |
| 1/2 | 15 | 66.5 | 58 | 115 | 1.74 | |
| 3/4 | 20 | 75 | 86 | 130 | 3.12 | |
| 1 | 25 | 96.6 | 108 | 163 | 3.5 | |
| 1 1/2 | 40 | 115 | 130 | 180 | 4.5 | |
| 2 | 50 | 125 | 144 | 200 | 7.5 | |
TEST PRESSURE
| Class | Hydraulic Body KgCm2 (PSIG) | Hydraulic Seat Back Seat KgCm2(PSIG) | Seat Air KgCm2(PSIG) |
| 800 | 210 (2986) | 153 (2176) | 7 (100) |
| 1500 | 396 (5632) | 291 (4138) | 7 (100) |
| 2500 | 660 (9387) | 484 (6884) | 7 (100) |
Special requirements
Special material ,customer specific design & internal parts provide as per requirement & on request.
Note: -Due to continues developments we reserve the right to change the parameters with out prior notice
